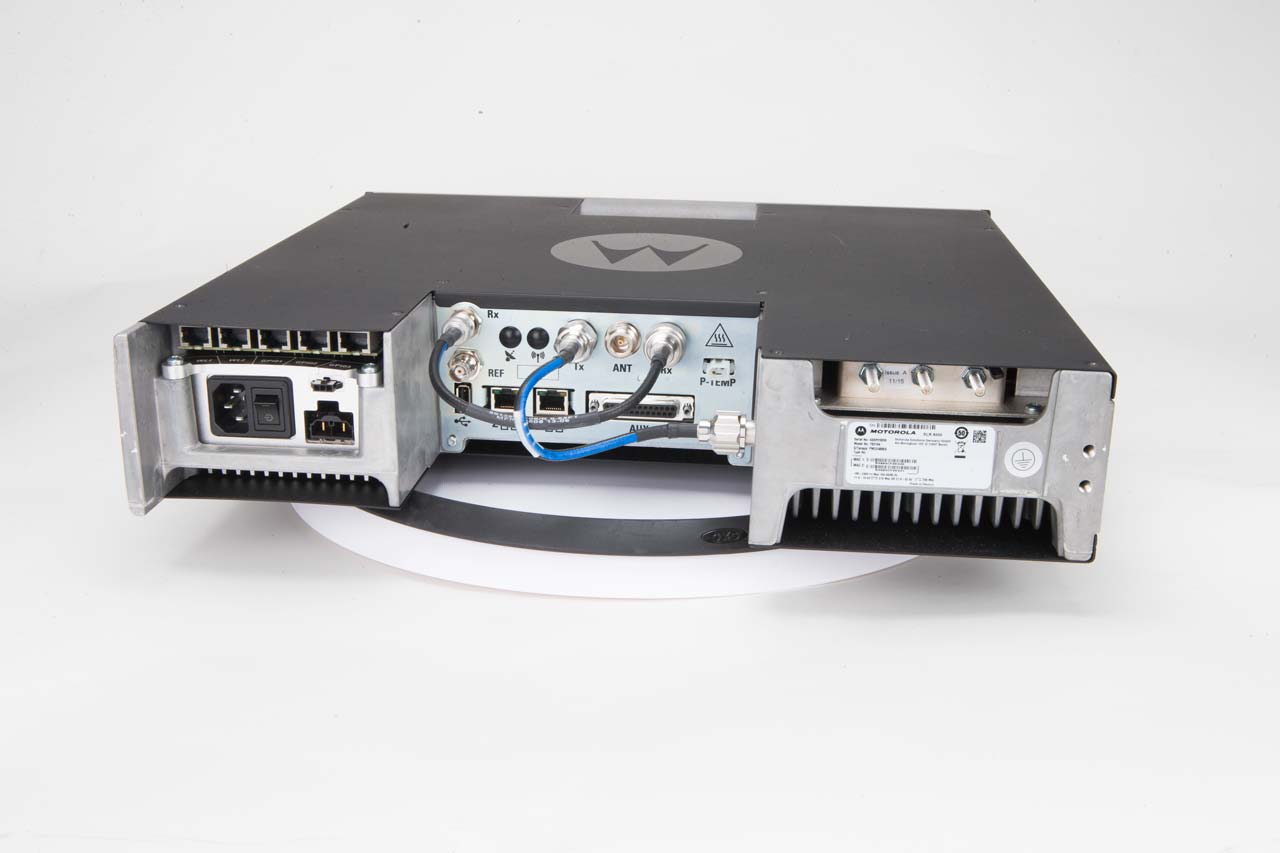

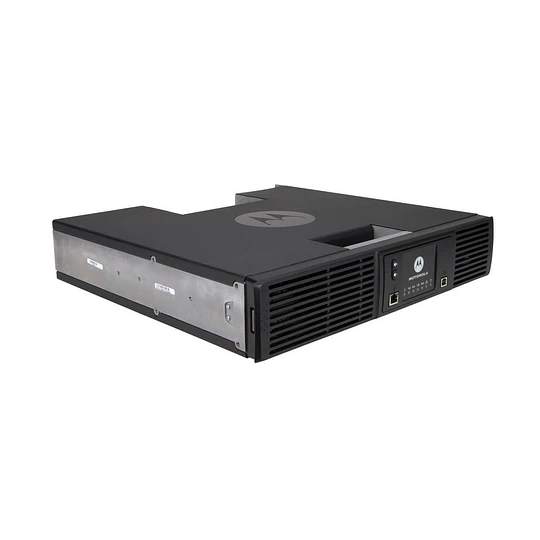

Motorola Repeater Station (SLR8000; 100Watts) VHF

Description

• Frequency Bands: VHF (136–174 MHz), UHF (400–470 MHz), 800/900 MHz
• RF Output Power: 1–100 W (AC or 24V DC), 1–50 W (12V DC)
• 100% continuous duty cycle at full power
• Channel Capacity: Up to 64 channels
• Channel Spacing: 12.5, 20, 25, 30 kHz
• Receiver Sensitivity: 0.3 μV (12dB SINAD), 0.25 μV (5% BER)
• Audio Distortion: Less than 3% (typical <1%)
• Supports all MOTOTRBO system types: Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus
• Operates in analog, digital, or mixed mode (analog/digital)
• Integrated 5A battery charger with AC/DC power and battery revert support
• Dimensions (H x W x D): 3.5 x 19 x 17.25 in (89 x 483 x 438 mm)
• Weight: 31 lbs (14.1 kg)
• Modular 2U rack-mount design for efficient installation and maintenance
• Advanced diagnostics, remote management, and field-replaceable modules
• Validated through Motorola’s Accelerated Life Testing (ALT) program for high reliability
